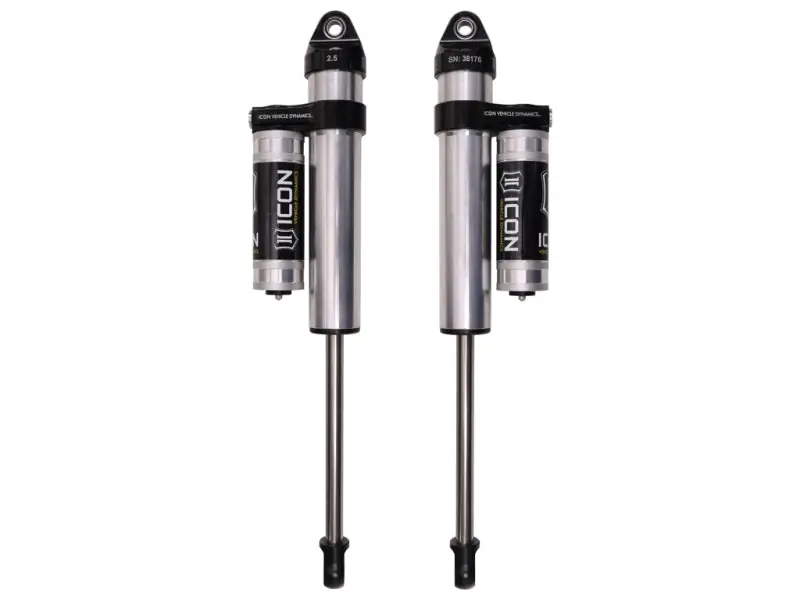

Editor’s Pick ICON 09-14 Ford F-150 6in Rear 2.5 Custom Shocks VS PB – Pair

Description

Manufacturer Part # : 97702P-CB

Market Description

ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON’S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspensio n when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) or the Omega Series bypass shocks.

Features and Benefits

• All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaft
• Nitrogen charged monotube design with piggyback reservoir
• 6061 aircraft grade aluminum CNC machined components
• 100% Revalveable
• 100% Rebuildable

Product Description – Short

• ICON 09-14 Ford F-150 6in Rear 2.5 Custom Shocks VS PB – Pair
• REAR SHOCK ABSORBERS

Product Description – Extended

2009-2014 FORD F150 6″ LIFT REAR 2.5 VS PIGGYBACK SHOCK PAIR

Product Description – Long

09-14 F150 6″ REAR 2.5 VS PB PAIR

Product Description – Invoice

09-14 F150 6″ REAR 2.5 PB PAIR

AAIA Part Type Description

Suspension Shock Absorber Set

“>
