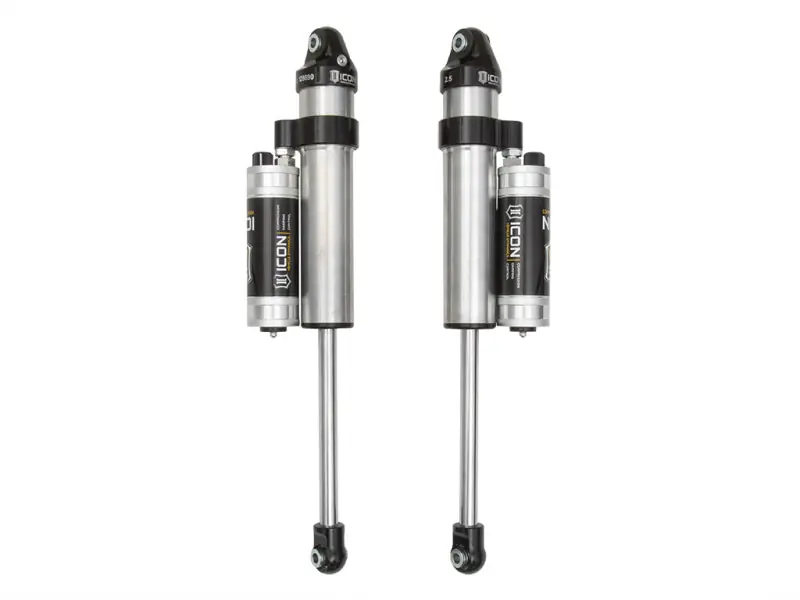

Fan Favorite ICON 2019+ Ford Ranger Rear 2.5 Series Shocks VS PB CDCV – Pair

Description

Manufacturer Part # : 97730CP

Market Description

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON’S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.

Product Description – Extended

• ICON 2.5 Series shocks are designed to give you outstanding performance off-road and a smooth ride on the street. With a vehicle-specific design, these shocks are configured specifically for each application in both length and damping tune.
• 2019-UP FORD RANGER REAR 2.5 VS PIGGYBACK CDCV SHOCK PAIR

Features and Benefits

• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• ICON’s CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaft
• Nitrogen charged monotube design with piggyback reservoir
• 6061 aircraft grade aluminum CNC machined components
• 100% Revalveable
• 100% Rebuildable

Associated Comments

• TECH NOTE: Compatible with Rangers equipped with 0-1.5″ of rear lift over stock
• TECH NOTE: Not compatible with Ranger Raptor

Product Description – Short

• ICON 2019+ Ford Ranger Rear 2.5 Series Shocks VS PB CDCV – Pair
• SHOCK ABSORBER PAIR
• REAR SHOCK PAIR

Product Description – Long

• 19-UP RANGER REAR 2.5 VS PB CDCV PAIR
• 19-23 RANGER REAR 2.5 VS PB CDCV PAIR

AAIA Part Type Description

Suspension Shock Absorber Set

Product Description – Invoice

• 19-UP RANGER REAR CDCV PAIR
• 97730CP

“>
