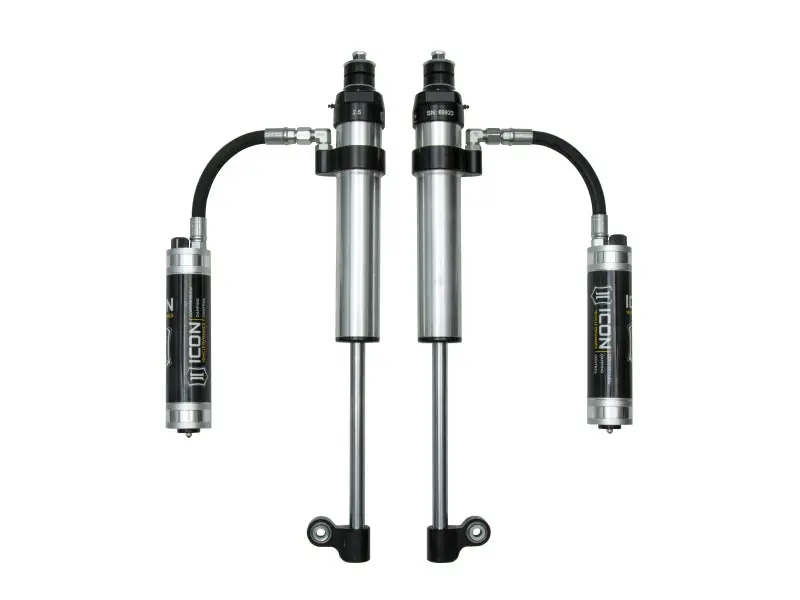

Hot Deal ICON 2005+ Toyota Tacoma RXT Rear 2.5 Series Shocks RR CDCV – Pair

Description

Manufacturer Part # : 57826CP

Market Description

ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. With a truly vehicle-specific design, these shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON shock absorbers, these 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’s unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom-out conditions and controls the suspension effectively when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks.

Product Description – Extended

• ICON 2.5 Aluminum Series shocks are designed for outstanding performance off-road and a smooth ride on the street. With vehicle-specific design, these shocks are configured specifically for each application in both length and damping tune.
• 2005-UP TACOMA RXT REAR 2.5 REMOTE RESERVOIR CDCV SHOCK PAIR

Features and Benefits

• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• ICON’s CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaft
• Nitrogen charged monotube design with remote reservoir
• 6061 aircraft grade aluminum CNC machined components
• Double-sealed Schrader caps reduce risk of damage
• 100% Rebuildable
• 100% Revalveable

Associated Comments

• TECH NOTE: ICON Multi-Rate Leaf Springs Part # 158505 (QTY of 2) required for installation
• TECH NOTE: Compatible with 0-2.625″ of rear lift provided by ICON Multi-Rate Leaf Springs
• TECH NOTE: Not compatible with 2005-2015 2WD 5-Lug Toyota Tacoma models
• ICON Multi-Rate Leaf Springs Part # 158505 required for installation

Product Description – Short

• ICON 2005+ Toyota Tacoma RXT Rear 2.5 Series Shocks RR CDCV – Pair
• SHOCK ABSORBER PAIR
• RXT SHOCKS W/ CDC

Product Description – Invoice

• 05-UP TACOMA RXT REAR 2.5 RR CDCV PAIR
• 57826CP

Product Description – Long

05-23 TACOMA RXT REAR 2.5 RR CDCV PAIR

AAIA Part Type Description

Suspension Shock Absorber Set

“>
