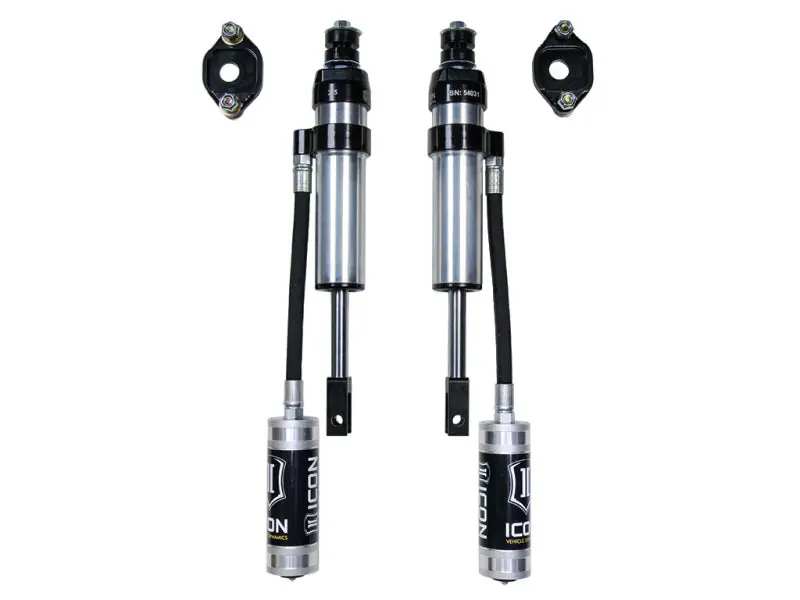

ICON 11-19 GM HD 0-2in Front 2.5 Series Shocks VS RR w/Upper Control Arm – Pair Latest

Description

Manufacturer Part # : 77832P

Market Description

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON shock absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’s unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.

Features and Benefits

• All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Polyurethane bushings and forged steel mounting stems for OE factory type fitment
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaft
• Nitrogen charged monotube design with remote reservoir
• 6061 aircraft grade aluminum CNC machined components
• 100% Rebuildable
• 100% Revalveable

Associated Comments

TECH NOTE: Aftermarket upper control arms with high angle ball joint required for install

Product Description – Extended

2011-2019 GM HD 0-2″ LIFT FRONT 2.5 VS REMOTE RESERVOIR EXTENDED TRAVEL SHOCK PAIR

Product Description – Short

• ICON 11-19 GM HD 0-2in Front 2.5 Series Shocks VS RR w/Upper Control Arm – Pair
• GM HD FRNT 2.5 RR

Product Description – Long

11-19 GM HD 0-2″ FRONT 2.5 VS RR EXT TRAV PAIR

Product Description – Invoice

11-19 GM HD 0-2″ FRONT 2.5 RR EXT PAIR

AAIA Part Type Description

Suspension Shock Absorber Set

“>
