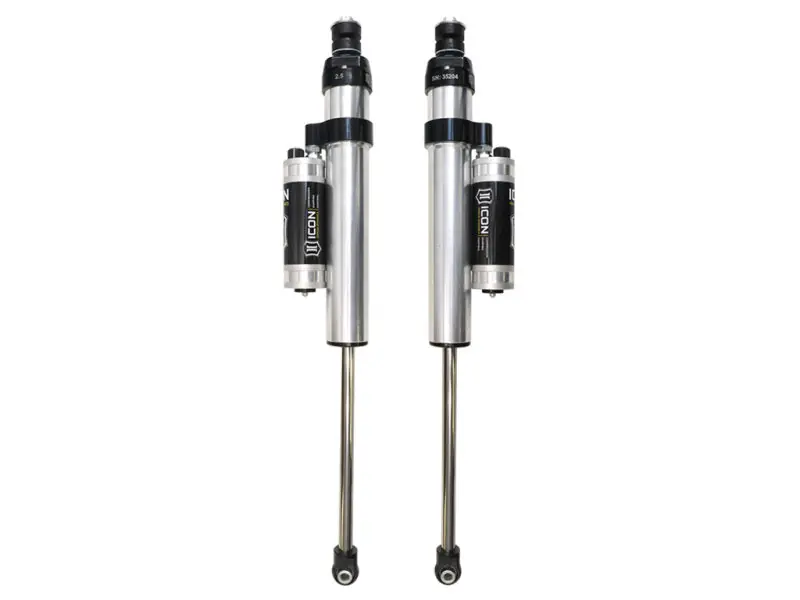

ICON 2005+ Ford F-250/F-350 Super Duty 4WD 7in Front 2.5 Series Shocks VS PB CDCV – Pair Order Now

Description

Manufacturer Part # : 67720CP

Market Description

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON’S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.

Product Description – Extended

• ICON VS 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature remote reservoirs and are 100% rebuildable/revalveable.
• 2005-UP FSD 4WD 7″ LIFT FRONT 2.5 VS PIGGYBACK CDCV SHOCK PAIR

Associated Comments

• OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
• Recommended Aftermarket Tires: 37″ x 12.50″ (Larger tires may fit but fender trimming and modifications may be required)
• TECH NOTE: Compatible with 6-7” of front lift over stock of 2020-2025 F-250/F-350 4WD equipped with Tremor package
• TECH NOTE: Compatible with 7-8” of front lift over stock of 2020-2025 F-250/F-350 4WD without Tremor package
• Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.00” Backspace / 6mm Offset
• TECH NOTE: Compatible with 7” of front lift over stock of 2005-2019 F-250/F-350 4WD
• Recommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5.25” Backspace / 6mm Offset
• APPLICATION NOTE #150: Shocks are fully serviceable
• APPLICATION NOTE #1: Only fits 4WD models

Features and Benefits

• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• ICON’s CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaft
• Nitrogen charged monotube design with piggyback reservoir
• 6061 aircraft grade aluminum CNC machined components
• 100% Revalveable
• 100% Rebuildable

Product Description – Short

• ICON 2005+ Ford F-250/F-350 Super Duty 4WD 7in Front 2.5 Series Shocks VS PB CDCV – Pair
• FRNT SHOCK ABSORBERS
• SHOCK ABSORBER PAIR

Product Description – Long

• 05-25 FSD 4WD 7″ FRONT 2.5 VS PB CDCV PAIR
• 05-UP FSD 4WD 7″ FRONT 2.5 VS PB CDCV PAIR

Product Description – Invoice

• 05-UP FSD 4WD 7 FRNT 2.5 VS PB CDCV PAIR
• 67720CP

AAIA Part Type Description

Suspension Shock Absorber Set

“>
