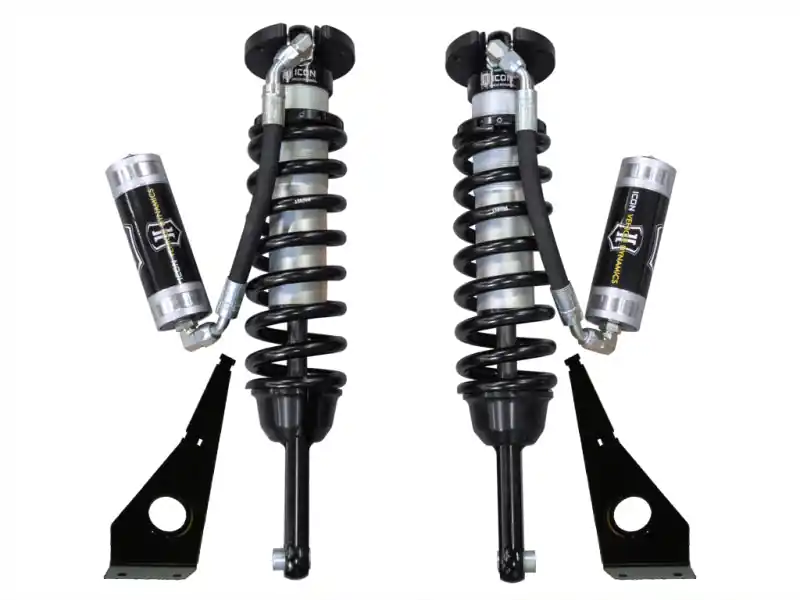

ICON 2010+ Toyota FJ/4Runner 2.5 Series Shocks VS RR Coilover Kit Modern

Description

Manufacturer Part # : 58746

Market Description

• ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and 2010-2023 Lexus GX460. These adjustable coilovers allow up to 0-3.5” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible, while still being compatible with the vehicle’s stock front upper control arms, along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota 4Runner, FJ Cruiser or Lexus GX460.
• ICON Vehicle Dynamics has taken their already perfect performing coilover shocks and given it the heat dissipation and long lasting performance of a full blown race shock. All of this has been developed to bolt on and install with ease. They increase suspension travel and dramatically increase the capabilities of your FJ Cruiser or 4Runner’s front suspension. These coilovers come complete with all the hardware necessary to complete the installation as well as a sway bar relocation bracket kit to adjust the location of the sway bar to clear the larger shock. These coil-over’s are meant to be installed with an aftermarket uniball upper control arm kit to ensure the proper amount of wheel travel and to prevent premature ball joint wear.

Product Description – Extended

• These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride quality across varying types of terrain.
• 2010-2014 FJ CRUISER/2010-UP 4RUNNER 2.5 VS REMOTE RESERVOIR COILOVER KIT

Associated Comments

• APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
• Recommended Aftermarket Tires: 33″ x 11.50″ (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• APPLICATION NOTE #55:Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• TECH NOTE: Standard travel length coilovers are compatible with stock front upper control arms
• Recommended Aftermarket Wheels: ICON Alloys – 17×8.5 w/ 4.75″ Backspace / 0mm Offset
• APPLICATION NOTE #47: 700lb coil spring available for heavier equipped vehicles.
• Recommended Aftermarket Wheels: ICON Alloys – 18×9 w/ 5″ Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 20×9 w/ 5″ Backspace / 0mm Offset
• Factory Wheels & Tires Fitment: Yes

Features and Benefits

• All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• 100% Bolt-on – no drilling, cutting or welding necessary for installation
• Corrosion resistant CAD plated shock bodies with 7/8″ diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• Adjustable ride height for 0-3.5″ of front lift height over stock
• Vehicle specific tuned for superior shock damping and control
• Increased wheel travel and improved ride quality over stock
• 6061 Aircraft grade aluminum CNC machined components
• 250 PSI nitrogen-charged internal reservoir
• Fully rebuildable and re-tunable
• ICON engineered coil springs

Product Description – Short

• ICON 2010+ Toyota FJ/4Runner 2.5 Series Shocks VS RR Coilover Kit
• FJ/T4R COILOVER KIT
• COILOVER KIT

Product Description – Long

• 10-14 FJ/10-24 4RUNNER 2.5 VS RR COILOVER KIT
• 10-UP FJ/4RUNNER 2.5 VS RR COILOVER KIT

AAIA Part Type Description

Coilover Spring and Shock Assembly

Product Description – Invoice

• FJ/4RUNNER 2.5 VS RR COILOVER KIT
• 58746

“>
