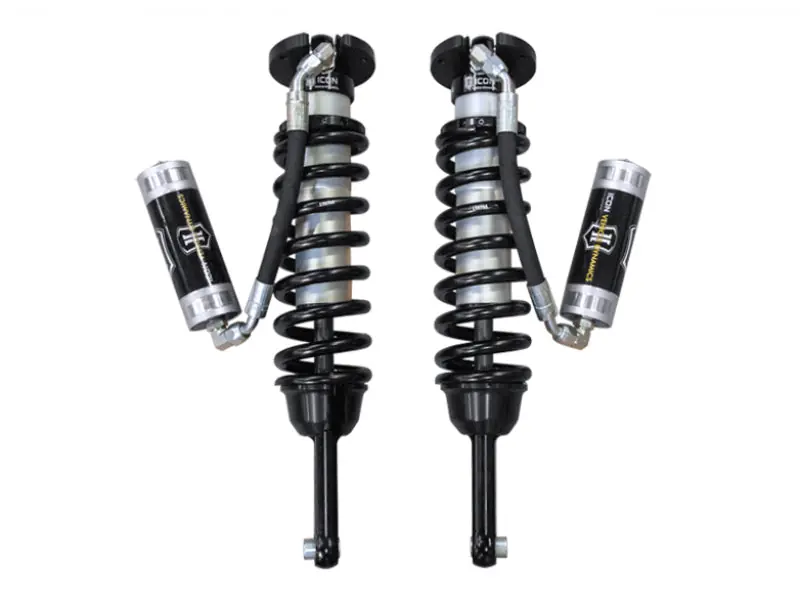

ICON 2010+ Toyota FJ/4Runner Ext Travel 2.5 Series Shocks VS RR Coilover Kit w/700lb Spring Rate Editor’s Pick

Description

Manufacturer Part # : 58747-700

Market Description

• The ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir coilover shocks are an incredible upgrade for the front end of the Toyota FJ Cruiser, 4Runner, and Lexus GX platforms. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3.5” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON’s larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. Upgraded coil springs are included to better support added weight from accessories such as front bumpers and winches. These extended length versions offer increased wheel travel but also require the installation of aftermarket upper control arms in conjunction with the coilovers. When paired with ICON 2.0 Aluminum Series or 2.5 Series rear shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Toyota or Lexus SUV.
• When paired with ICON 2.0 Aluminum Series or 2.5 Series rear shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Toyota or Lexus SUV.

Product Description – Extended

• These extended-travel ICON VS 2.5 Series coilovers offer increased wheel travel but also require the installation of aftermarket upper control arms. They are vehicle specific, 100% rebuildable, and 100% revalveable.
• 2010-UP FJ CRUISER/2003-UP 4RUNNER/2003-UP GX470/460 EXTENDED TRAVEL 2.5 VS REMOTE RESERVOIR COILOVER KIT WITH 700LB COILS

Associated Comments

• TECH NOTE: 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information.
• APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
• Recommended Aftermarket Tires: 33″ x 11.50″ (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• APPLICATION NOTE #55:Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only.
• Recommended Aftermarket Wheels: ICON Alloys – 17×8.5 w/ 4.75″ Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 18×9 w/ 5″ Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 20×9 w/ 5″ Backspace / 0mm Offset
• Factory Wheels & Tires Fitment: Yes

Features and Benefits

• Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
• All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
• High quality ICON-engineered coil springs with higher spring rate included to better support added weight to front end
• Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
• External reservoir to attain cooler operating temperatures during extended off-road use
• Extended Travel length requires installation of aftermarket front upper control arms
• Superior low speed control reduces body roll and increases on-road stability
• FK Rod End bearings provide extended longevity and minimal deflection
• Bolt-in design makes for an easy install into OEM shock location
• Corrosion resistant CAD plated shock body with 7/8″ shaft
• Adjustable coilovers yield 0-3.5″ of front lift height

Product Description – Short

• ICON 2010+ Toyota FJ/4Runner Ext Travel 2.5 Series Shocks VS RR Coilover Kit w/700lb Spring Rate
• FJ/T4R/GX COILOVERS
• COILOVER KIT

Product Description – Long

• 10-14 FJ/10-24 4RNR/10-23 GX EXT TRAVEL 2.5 VS RR COILOVER KIT 700LB
• 10-UP FJ/4RNR/10-UP GX EXT TRAVEL 2.5 VS RR COILOVER KIT 700LB

Product Description – Invoice

• 10-UP FJ/T4R/GX EXT 2.5 RR CO KIT 700LB
• 58747-700

AAIA Part Type Description

Coilover Spring and Shock Assembly

“>
