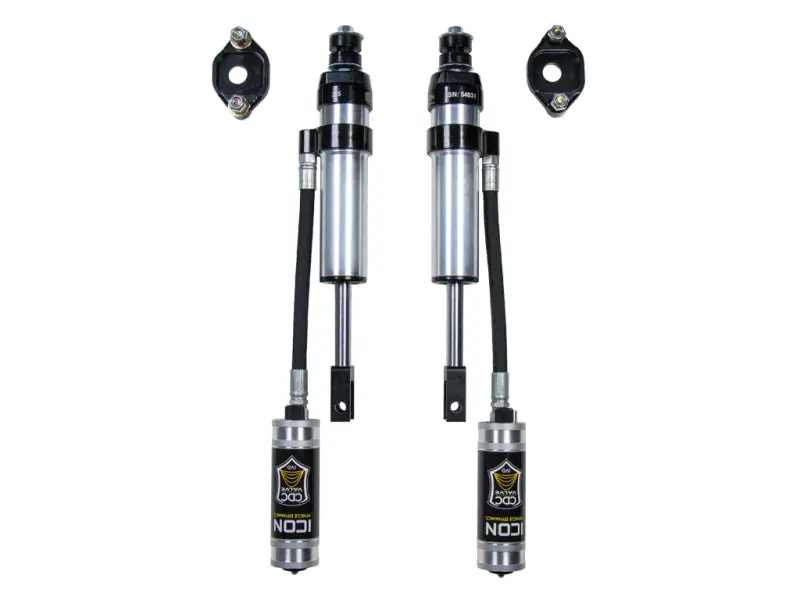

Markdown ICON 11-19 GM HD 0-2in Front 2.5 Series Shocks VS RR CDCV – Pair w/ICON Upper Control Arm

Description

Manufacturer Part # : 77832CP

Market Description

ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON’S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks.

Features and Benefits

• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• ICON’s CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaft
• Nitrogen charged monotube design with remote reservoir
• 6061 aircraft grade aluminum CNC machined components
• 100% Revalveable
• 100% Rebuildable

Product Description – Short

• ICON 11-19 GM HD 0-2in Front 2.5 Series Shocks VS RR CDCV – Pair w/ICON Upper Control Arm
• FRNT SHOCK ABSORBERS

Associated Comments

TECH NOTE: Aftermarket upper control arms with high angle ball joint required for install

Product Description – Extended

2011-2019 GM HD 0-2″ LIFT FRONT 2.5 VS REMOTE RESERVOIR CDCV EXTENDED TRAVEL SHOCK PAIR

Product Description – Long

11-19 GM HD 0-2″ FRONT 2.5 VS RR CDCV EXT TRAV PAIR

Product Description – Invoice

11-19 GM HD 0-2 FRNT 2.5 RR CDC EXT PAIR

AAIA Part Type Description

Suspension Shock Absorber Set

“>
