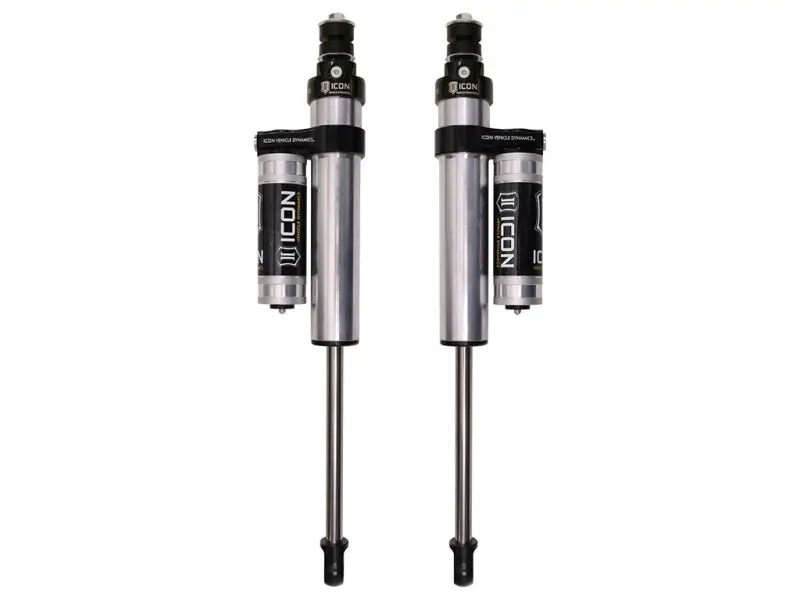

Top Pick ICON 2005+ Ford F-250/F-350 Super Duty 4WD 4.5in Front 2.5 Series Shocks VS PB – Pair

Description

Manufacturer Part # : 67710P

Market Description

ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. With a truly vehicle-specific design, these shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON shock absorbers, these 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’s unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom-out conditions and controls the suspension effectively when compressing at high velocity. If you are looking for a more user-defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.

Product Description – Extended

• ICON VS 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature remote reservoirs and are 100% rebuildable/revalveable.
• 2005-UP FSD 4WD 4.5″ LIFT FRONT 2.5 VS PIGGYBACK SHOCK PAIR

Associated Comments

• OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
• TECH NOTE: Compatible with 3.5” of front lift over stock of 2020-2022 F-250/F-350 4WD equipped with Tremor package
• TECH NOTE: Compatible with 4.5” of front lift over stock of 2020-2022 F-250/F-350 4WD without Tremor package
• Recommended Aftermarket Tires: 35″ x 12.50″ (37″ x 12.50″ with fender trimming and modifications required)
• TECH NOTE: Can be installed as secondary shocks in OE location with ICON 4-5.5″ lift coilover conversions
• Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.00” Backspace / 6mm Offset
• TECH NOTE: Compatible with 4.5” of front lift over stock of 2005-2019 F-250/F-350 4WD
• Recommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5.25” Backspace / 6mm Offset

Features and Benefits

• All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaft
• Nitrogen charged monotube design with piggyback reservoir
• 6061 aircraft grade aluminum CNC machined components
• Double-sealed Schrader caps reduce risk of damage
• 100% Revalveable
• 100% Rebuildable

Product Description – Short

• ICON 2005+ Ford F-250/F-350 Super Duty 4WD 4.5in Front 2.5 Series Shocks VS PB – Pair
• FRNT SHOCK ABSORBERS
• SHOCK ABSORBER PAIR

Product Description – Invoice

• 05-UP FSD 4WD 4.5″ FRONT 2.5 VS PB PAIR
• 67710P

Product Description – Long

05-22 FSD 4WD 4.5″ FRONT 2.5 VS PB PAIR

AAIA Part Type Description

Suspension Shock Absorber Set

“>
